Created for Hawaii’s

this 6KW output, 48VDC Inverter + Charge Controller
is completely enclosed

√ humidity
√ damp weather
√ geckos and pests

  • - This 6KW output at 48VDC Inverter is completely enclosed with IP65 certified fans.

    - Producing 120v and 240v split phase. It can handle your daily loads.

    - Grow your system by paralleling up to 6 units; a total of 36KW output!

    - Top off your batteries by noon, and the unit automatically transitions to use your PV panel system to power straight to your load. Or use without batteries to power with the sun!

    - No sun. No batteries. No problem with dual AC imports that allow you to use utility (not approved by HECO) or your generator. It’s versatile.

    - Super High PV panel input of 600V with dual (2x) PV input.

    - MPPT solar charger max 120A.

    - Charge controller max 120A.

    - WIFI transmitter supports monitoring your system on your smartphone.

    - BMS Communication with SOK 48v100AH Rack batteries, among many others.

    - RS232/USB/BMS/WIFI communication interface

    - Timer feature for AC output & charging.

    - Comprehensive programming options & parameters.

    - Adjustable bulk & float charging voltage.

    - Overload & short circuit protection.

    - Genset starter dry contact.- Equalization charge.

    - Water Resistant : Do NOT install units on sites where there is direct exposure to sunlight, rain, snow, >95% humidity, near antenna or at altitude >2km above sea level.

    - UL1741 Compliant.

  • We have these units in stock.

    Pick up at our Big Island location, or we can deliver to you on island for a fuel fee.

    Ship to other Islands for a packing and handling fee of $75 + Pay on Delivery (POD) with Young Bothers at pick up. Or FEDEX. Unit is 100lbs, so we can see which rate is better for your needs.

  • Dimensions 28 × 22 × 15 in
    Weight 100 lbs

    Download LVX6048WP Specs
    Download LVX6048WP Manual
    Download Generator Info

Versatile, Reliable, Affordable

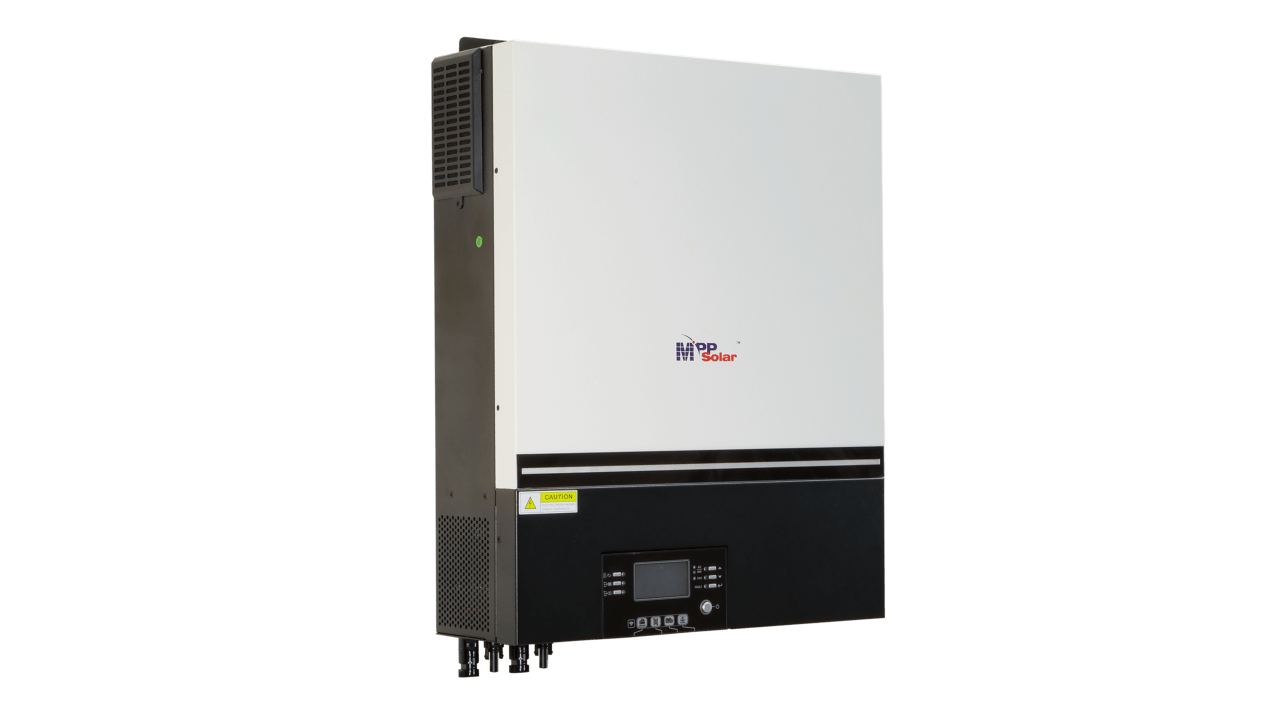

6.5KW output, 48VDC Inverter + Charge Controller
120v / Split Phase 240V

  • - 6.5KW, 48V Pure Sine Wave Output with 120V

    - 240v Loads? No problem. Parallel support up to 6 units, in single phase (120V), split phase (120V/240V/208V) or 3-phase (208V). 6 units offer 39KW output!

    - Top off your batteries by noon, and the unit automatically transitions to use your PV panel system to power straight to your load. Or use without batteries to power with the sun!

    - Still need options? Power without batteries or sun using your generator!

    - PV input up to 250VOC.

    -MPPT solar charger 120A with 2 MPPT input channels.

    - Utility battery charger max 120A.

    - WIFI transmitter supports monitoring your system on your smartphone.

    - BMS Communication with SOK 48v100AH Rack batteries, among many others.

    - RS232/USB/BMS/WIFI communication interface.

    - Detachable LCD remote display.

    - Operations mode is displayed with a customizable RGB LED.

    - Timer feature for AC output & charging.

    - Comprehensive programming options & parameters.

    - Adjustable bulk & float charging voltage.

    - Overload & short circuit protection.

    - Genset starter dry contact.

    - Equalization charge.

    - Indoor installation only.

    - UL1741 Compliant & UV certified!

  • We have units in stock.

    Pick up at our Big Island, or we can deliver to you on island for a fuel fee.

    Can be sent via FedEx to other islands.

  • Dimensions 28 × 22 × 15 in
    Weight 51 lbs

    Download LV6548 Specs
    Download LV6548 Manual
    Download     Generator Info
